主要特性和優勢
- 低VCEsat晶體管和RET集成在小型SMD塑料封裝中
- 節省空間的解決方案，可簡化電路設計，將器件數從四個減少到一個
- VCEO范圍：15 V至60 V，提供四個電阻值
- 減少焊點，提升可靠性
- 電流能力高達：
- IC：1.8 A（20 V時）
- IC：1.5 A（60 V時）
- 降低貼片成本
- 低集電極-發射極飽和電壓
- 閾值電壓(<1 V)低于MOSFET
- 多個封裝選擇
- 符合AEC-Q101標準
關鍵應用
- 供電線路開關
- 電池充電器開關
- 適合LED、驅動器和背光應用的高端開關
- 便攜式設備
- 中等功率DC-DC轉換
參數搜索
Low VCEsat (BISS) transistors load switches
數據加載中，請稍候...參數搜索不可用。
產品
| 型號 | 描述 | 狀態 | 快速訪問 |
|---|---|---|---|
| PBLS1501Y; PBLS1501V | 15 V PNP BISS loadswitch | ACT |
|
| PBLS1501V | 15 V PNP BISS loadswitch | EndOfLife | |
| PBLS1502Y; PBLS1502V | 15 V PNP BISS loadswitch | ACT |
|
| PBLS1502V | 15 V PNP BISS loadswitch | EndOfLife | |
| PBLS1502Y | 15 V PNP BISS loadswitch | EndOfLife | |
| PBLS1503Y; PBLS1503V | 15 V PNP BISS loadswitch | ACT |
|
| PBLS1503V | 15 V PNP BISS loadswitch | EndOfLife | |
| PBLS1503Y | 15 V PNP BISS loadswitch | Production | |
| PBLS1504Y; PBLS1504V | 15 V PNP BISS loadswitch | ACT |
|
| PBLS1504V | 15 V PNP BISS loadswitch | EndOfLife | |
| PBLS1504Y | 15 V 500 mA PNP/NPN loadswitch double transistor | Production | |
| PBLS4001Y; PBLS4001V | 40 V PNP BISS loadswitch | ACT |
|
| PBLS4001V | 40 V PNP BISS loadswitch | EndOfLife | |
| PBLS4001Y | 40 V PNP BISS loadswitch | Production | |
| PBLS4003Y; PBLS4003V | 40 V PNP BISS loadswitch | ACT |
|
| PBLS4003V | 40 V PNP BISS loadswitch | EndOfLife | |
| PBLS4003Y | 40 V 500 mA PNP/NPN loadswitch double transistor | Production | |
| PBLS4004Y; PBLS4004V | 40 V PNP BISS loadswitch | ACT |
|
| PBLS4004V | 40 V PNP BISS loadswitch | EndOfLife | |
| PBLS4004Y | 40 V PNP BISS loadswitch | Production | |
| PBLS4005Y; PBLS4005V | 40 V PNP BISS loadswitch | ACT |
|
| PBLS4005V | 40 V PNP BISS loadswitch | EndOfLife | |
| PBLS4005Y | 40 V 500 mA PNP/NPN loadswitch double transistor | Production | |
| PBLS1501Y | 15 V PNP BISS loadswitch | Production | |
| PBLS1504Y-Q | 15 V 500 mA PNP/NPN loadswitch double transistor | Production | |
| PBLS2001D | 20 V PNP BISS loadswitch | Production | |
| PBLS2001S | 20 V PNP BISS loadswitch | EndOfLife | |
| PBLS2002D | 20 V PNP BISS loadswitch | Production | |
| PBLS2002S | 20 V PNP BISS loadswitch | EndOfLife | |
| PBLS2003D | 20 V PNP BISS loadswitch | Production | |
| PBLS2003S | 20 V PNP BISS loadswitch | EndOfLife | |
| PBLS2004D | 20 V PNP BISS loadswitch | EndOfLife | |
| PBLS2021D | 20 V, 1.8 A PNP BISS loadswitch | Production | |
| PBLS2022D | 20 V, 1.8 A PNP BISS loadswitch | Production | |
| PBLS2023D | 20 V, 1.8 A PNP BISS loadswitch | Production | |
| PBLS2024D | 20 V, 1.8 A PNP BISS loadswitch | EndOfLife | |
| PBLS4001D | 40 V PNP BISS loadswitch | EndOfLife | |
| PBLS4002D | 40 V PNP BISS loadswitch | EndOfLife | |
| PBLS4002V | EndOfLife | ||
| PBLS4002Y | 40 V, 500 mA PNP loadswitch transistor | Production | |
| PBLS4002Y-Q | 40 V PNP loadswitch transistor | Production | |
| PBLS4003D | 40 V PNP BISS loadswitch | Production | |
| PBLS4003Y-Q | 40 V 500 mA PNP/NPN loadswitch double transistor | Production | |
| PBLS4004D | 40 V PNP BISS loadswitch | EndOfLife | |
| PBLS4005D | 40 V PNP BISS loadswitch | Production | |
| PBLS4005Y-Q | 40 V 500 mA PNP/NPN loadswitch double transistor | Production | |
| PBLS6001D | 60 V PNP BISS loadswitch | Production | |
| PBLS6002D | 60 V, 1 A PNP/NPN loadswitch double transistor | Production | |
| PBLS6003D | 60 V, 1 A PNP loadswitch double transistor | Production | |
| PBLS6004D | 60 V PNP BISS loadswitch | EndOfLife | |
| PBLS6005D | 60 V PNP BISS loadswitch | Production | |
| PBLS6021D | 60 V, 1.5 A PNP BISS loadswitch | Production | |
| PBLS6022D | 60 V, 1.5 A PNP BISS loadswitch | Production | |
| PBLS6023D | 60 V, 1.5 A PNP BISS loadswitch | Production | |
| PBLS6024D | 60 V, 1.5 A PNP loadswitch | Production | |
| PBLS6024D-Q | 60 V, 1.5 A PNP loadswitch | Production |
Visit our documentation center for all documentation
Marcom graphics (1) |
|||
|---|---|---|---|
| 文件名稱 | 標題 | 類型 | 日期 |

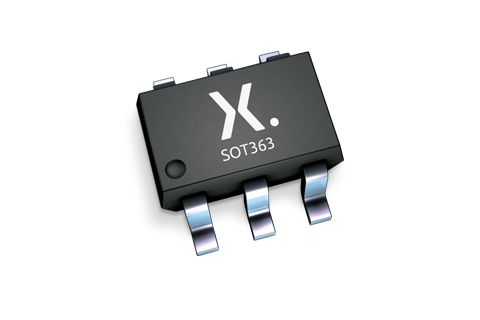

| SOT363_mk.png | plastic, surface-mounted package; 6 leads; 1.3 mm pitch; 2 mm x 1.25 mm x 0.95 mm body | Marcom graphics | 2017-01-28 |
