用于熱插拔和軟啟動的ASFET

可靠的線性模式，增強的SOA與低導通電阻

無論是云還是邊緣技術，都和我們忙碌的生活息息相關。我們的日常生活很大程度上依賴于始終開啟的機架式計算機、通信和存儲系統。要確保這些系統不會出現電源中斷，在將替換電路板插入運行中的系統時保護上面的器件，必須小心控制沖擊電流。在常規MOSFET中，強大的SOA性能和低導通電阻是互斥的。Nexperia專用于熱插拔和軟啟動的MOSFET在單個器件上同時提供這兩種功能，并針對不間斷的運行要求進行了優化。

用于熱插拔和軟啟動的ASFET專為支持始終開機的應用和設備而設計：

  • 當在背板中引入電容負載時，需要采用具備強勁線性模式性能和增強安全工作區域(SOA)的MOSFET來高效可靠地控制沖擊電流
  • 一旦安全接通替換電路板，MOSFET便會完全導通。在此運行模式下，具有低導通電阻值是最重要的，它有助于最大限度地保持低溫和高系統效率

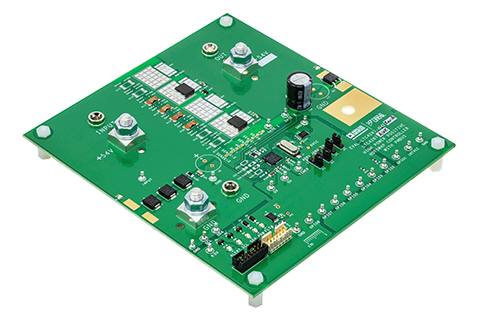

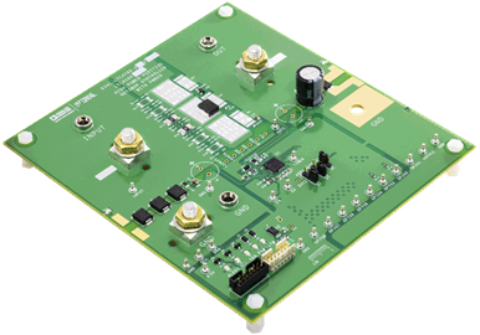

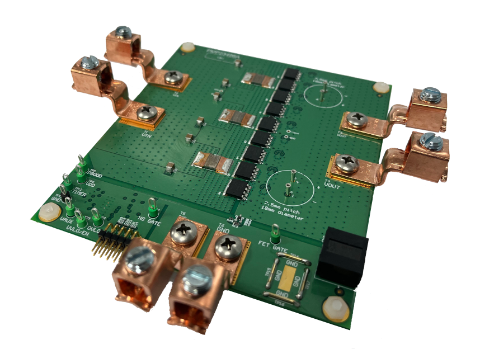

用于通信基礎設施的熱插拔



參數搜索

ASFETs for Hotswap and Soft Start
數據加載中，請稍候...
參數搜索不可用。

產品

型號 描述 狀態 快速訪問
PSMN013-100YSE N-channel 100 V 13 mΩ standard level MOSFET in LFPAK56 Production
PSMN1R0-100ASE N-channel, 100 V, 1.04 mOhm, MOSFET with enhanced SOA in CCPAK1212 package Production
PSMN1R0-30YLE N-channel 30 V, 1.1 mOhm, ASFET for hotswap with enhanced SOA in LFPAK56 Production

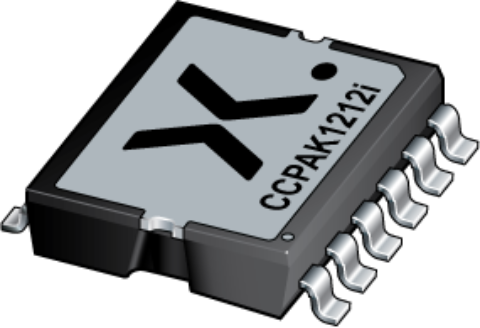

PSMN1R0-80CSE N-channel, 80 V, 0.95 mOhm, MOSFET with enhanced SOA in CCPAK1212i package Production
PSMN1R1-100CSE N-channel, 100 V, 1.09 mOhm, MOSFET with enhanced SOA in CCPAK1212i package Production
PSMN1R1-30YLE N-channel 30 V, 1.3 mOhm, ASFET for hotswap with enhanced SOA in LFPAK56 Production
PSMN1R2-80ASE N-channel, 80 V, 1.18 mOhm, MOSFET with enhanced SOA in CCPAK1212 package Production
PSMN1R2-80CSE N-channel, 80 V, 1.3 mOhm, MOSFET with enhanced SOA in CCPAK1212i package Production
PSMN1R4-100ASE N-channel, 100 V, 1.36 mOhm, MOSFET with enhanced SOA in CCPAK1212 package Production
PSMN1R4-100CSE N-channel, 100 V, 1.42 mOhm, MOSFET with enhanced SOA in CCPAK1212i package Production
PSMN1R5-30BLE N-channel 30 V 1.5 m? logic level MOSFET in D2PAK Production
PSMN1R6-25YLE N-channel 25 V, 1.9 mOhm, ASFET for hotswap with enhanced SOA in LFPAK56 Production
PSMN2R0-30YLE N-channel 30 V 2 m? logic level MOSFET in LFPAK Production
PSMN2R1-30YLE N-channel 30 V, 2.2 mOhm, ASFET for hotswap with enhanced SOA in LFPAK56 Production
PSMN2R3-100SSE N-channel 100 V, 2.3 mOhm MOSFET with enhanced SOA in LFPAK88 Production
PSMN2R5-80SSE N-channel 80 V, 2.5 mOhm MOSFET with enhanced SOA in LFPAK88 Production
PSMN2R9-100SSE N-channel 100 V, 2.9 mOhm MOSFET with enhanced SOA in LFPAK88 Production
PSMN3R4-30BLE N-channel 30 V, 3.4 m? logic level MOSFET in D2PAK Production
PSMN3R7-100BSE N-channel 100 V, 3.95 mΩ, standard level MOSFET in D2PAK Production
PSMN4R2-80YSE N-channel 80 V, 4.2 mOhm MOSFET with enhanced SOA in LFPAK56E Production
PSMN4R8-100BSE N-channel 100 V 4.8 mΩ standard level MOSFET in D2PAK Production
PSMN4R8-100PSE N-channel 100 V 5 mΩ standard level MOSFET with improved SOA in TO220 package EndOfLife
PSMN4R8-100YSE N-channel 100 V, 4.8 mOhm MOSFET with enhanced SOA in LFPAK56E Production
PSMN7R6-100BSE N-channel 100 V 7.6 mΩ standard level MOSFET in D2PAK Production
PSMN7R8-100PSE N-channel 100 V 7.8 mΩ standard level MOSFET with improved SOA in TO220 package EndOfLife
PSMN8R9-100BSE N-channel 100 V, 10 mOhm, standard level MOSFET in D2PAK Production
PSMNR56-25YLE N-channel 25 V, 0.63 mOhm, ASFET for hotswap with enhanced SOA in LFPAK56E Production
PSMNR67-30YLE N-channel 30 V, 0.70 mOhm, ASFET for hotswap with enhanced SOA in LFPAK56E Production
PSMNR82-30YLE N-channel 30 V, 0.87 mOhm, ASFET for hotswap with enhanced SOA in LFPAK56 Production
PSMNR89-25YLE N-channel 25 V, 0.98 mOhm, ASFET for hotswap with enhanced SOA in LFPAK56 Production
PSMNR90-80ASE N-channel, 80 V, 0.9 mOhm, MOSFET with enhanced SOA in CCPAK1212 package Production
PSMNR98-25YLE N-channel 25 V, 1.1 mOhm, ASFET for hotswap with enhanced SOA in LFPAK56 Production
Visit our documentation center for all documentation

Application note (2)
文件名稱 標題 類型 日期
AN50006.pdf Power MOSFETs in linear mode Application note 2022-04-12
AN90016.pdf Maximum continuous currents in NEXPERIA LFPAK power MOSFETs Application note 2020-09-03

Leaflet (4)
文件名稱 標題 類型 日期

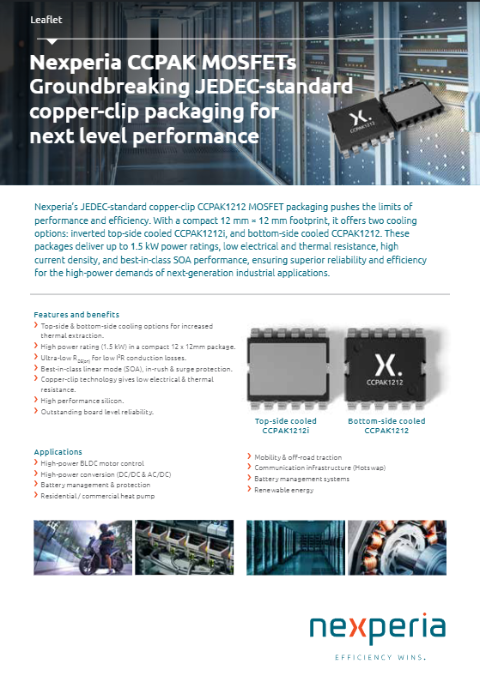

nexperia_document_CCPAK-MOSFETs_2024_Chinese.pdf CCPAK MOSFET LEAFLET CN Leaflet 2024-12-02
nexperia_document_CCPAK_MOSFETs_2024.pdf Nexperia CCPAK MOSFETs Leaflet 2024-11-19
nexperia_document_leaflet_LFPAK88_2022_CHN.pdf LFPAK88 將功率密度提升到新高度 Leaflet 2022-03-10
nexperia_document_leaflet_LFPAK88_2022.pdf LFPAK88 - Driving power-density to the next level Leaflet 2022-03-09

Selection guide (1)
文件名稱 標題 類型 日期
Nexperia_Selection_guide_2023.pdf Nexperia Selection Guide 2023 Selection guide 2023-05-10
