主要特性和優勢
- 電流增益匹配至10%、5%或2%
- 提升了電流鏡和差分放大器電路的性能
- 基極-發射極電壓匹配至2 mV
- 標準雙晶體管的簡易替代選擇（BCM系列）
- 可選擇標準雙晶體管引腳配置或應用優化型引腳配置
- 簡化電路板布局（PMP系列）
- 5引腳類型采用共發射極配置
- 無需進行成本高昂的額外調整
- 多種小型、極小型和超小型封裝
關鍵應用
- 電流鏡
- 差分和儀表放大器
- 對數放大器
- 比較器
參數搜索
Matched pair transistors
數據加載中，請稍候...參數搜索不可用。
產品
| 型號 | 描述 | 狀態 | 快速訪問 |
|---|---|---|---|
| BCM53DS | 80 V, 1 A PNP/PNP matched double transistors | Production | |
| BCM56DS | 80 V, 1 A NPN/NPN matched double transistors | Production | |
| BCM61B | NPN/NPN matched double transistor | Production | |
| BCM62B | PNP/PNP matched double transistor | Production | |
| BCM846BS-Q | NPN/NPN matched double transistor | Production | |
| BCM846BSH-Q | 65 V, 100 mA NPN/NPN matched double transistor | Production | |
| BCM847BS-Q | NPN/NPN matched double transistor | Production | |
| BCM847BSH-Q | 45 V, 100 mA NPN/NPN matched double transistor | Production | |
| BCM847DS | NPN/NPN matched double transistor | Production | |
| BCM847QAS | 45 V, 100 mA NPN/NPN matched double transistors | Production | |
| BCM856BS | 65 V, 100 mA PNP/PNP matched double transistors | Production | |
| BCM856BS-Q | 65 V, 100 mA PNP/PNP matched double transistors | Production | |
| BCM856BSH-Q | 65 V, 100 mA PNP/PNP matched double transistor | Production | |
| BCM856DS-Q | 65 V, 100 mA PNP/PNP matched double transistors | Production | |
| BCM857BS-Q | PNP/PNP matched double transistor | Production | |
| BCM857BSH-Q | 45 V, 100 mA PNP/PNP matched double transistor | Production | |
| BCM857DS | PNP/PNP matched double transistor | Production | |
| BCM857QAS | 45 V, 100 mA PNP/PNP matched double transistors | Production | |
| BCV61 | NPN general-purpose double transistors | Production | |
| BCV61A | NPN general-purpose double transistors | Production | |
| BCV61B | NPN general-purpose double transistors | Production | |
| BCV61C | NPN general-purpose double transistors | Production | |
| BCV62 | PNP general-purpose double transistors | Production | |
| BCV62A | PNP general-purpose double transistors | Production | |
| BCV62B | PNP general-purpose double transistors | Production | |
| BCV62C | PNP general-purpose double transistors | Production | |
| PHPT610035NK | NPN/NPN high power double bipolar transistor | Production | |
| PHPT610035NK-Q | NPN/NPN high power double bipolar transistor | Production | |
| PHPT610035PK | PNP/PNP matched high power double bipolar transistor | Production | |
| PHPT610035PK-Q | PNP/PNP matched high power double bipolar transistor | Production | |
| PMP3906AYS-Q | 40 V, 200 mA PNP/PNP matched double transistor | Production | |
| PMP4201G | 45 V, 100 mA NPN/NPN matched double transistor | NotForDesignIn | |
| PMP4201Y | 45 V, 100 mA NPN/NPN matched double transistor | Production | |
| PMP4501QAS | 45 V, 100 mA NPN/NPN matched double transistors | Production | |
| PMP4501Y | 45 V, 100 mA NPN/NPN matched double transistor | Production | |
| PMP5201G | 45 V, 100 mA PNP/PNP matched double transistor | NotForDesignIn | |
| PMP5201Y-Q | 45 V, 100 mA PNP/PNP matched double transistor | Production | |
| PMP5501G | EndOfLife | ||
| PMP5501QAS | 45 V, 100 mA PNP/PNP matched double transistors | Production | |
| PMP5501Y | 45 V, 100 mA PNP/PNP matched double transistor | Production |
Visit our documentation center for all documentation
Marcom graphics (1) |
|||
|---|---|---|---|
| 文件名稱 | 標題 | 類型 | 日期 |

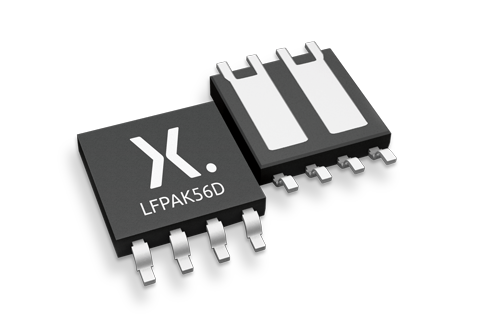

| LFPAK56D_SOT1205_mk.png | plastic, single ended surface mounted package (LFPAK56D); 8 leads; 1.27 mm pitch; 4.7 mm x 5.3 mm x 1.05 mm body | Marcom graphics | 2017-01-28 |
